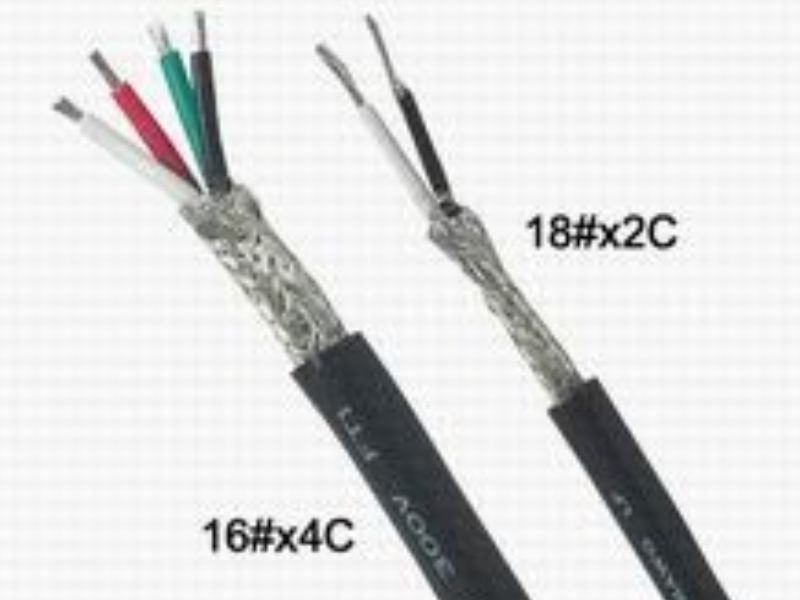

UL鍍錫隔離線(單隔離-雙隔離)(UL Shielded Cable)
商品簡述：
UL shielded cables are shielded cables that meet the safety standards of Underwriters Laboratories (UL). They utilize metal braids or aluminum foil to block electromagnetic interference and protect the stable transmission of internal signals.
主要結構與特性
- 導體：使用裸銅或鍍錫銅。導體負責通電。
- 隔離層：採用鋁箔麥拉或銅編織網，能有效減少雜訊與電磁干擾。
- 外被：多數為 PVC 材質，部分耐高溫或特殊環境會使用鐵氟龍（FEP）等材質。
- Main Structure and Characteristics: Conductor: Bare copper or tin-plated copper is used. The conductor is responsible for carrying current. Insulation Layer: Aluminum foil Mylar or copper braided mesh is used to effectively reduce noise and electromagnetic interference. Outer Sheath: Mostly made of PVC material, some high-temperature resistant or special environment materials such as Teflon (FEP) are used.
- 常見型號與用途

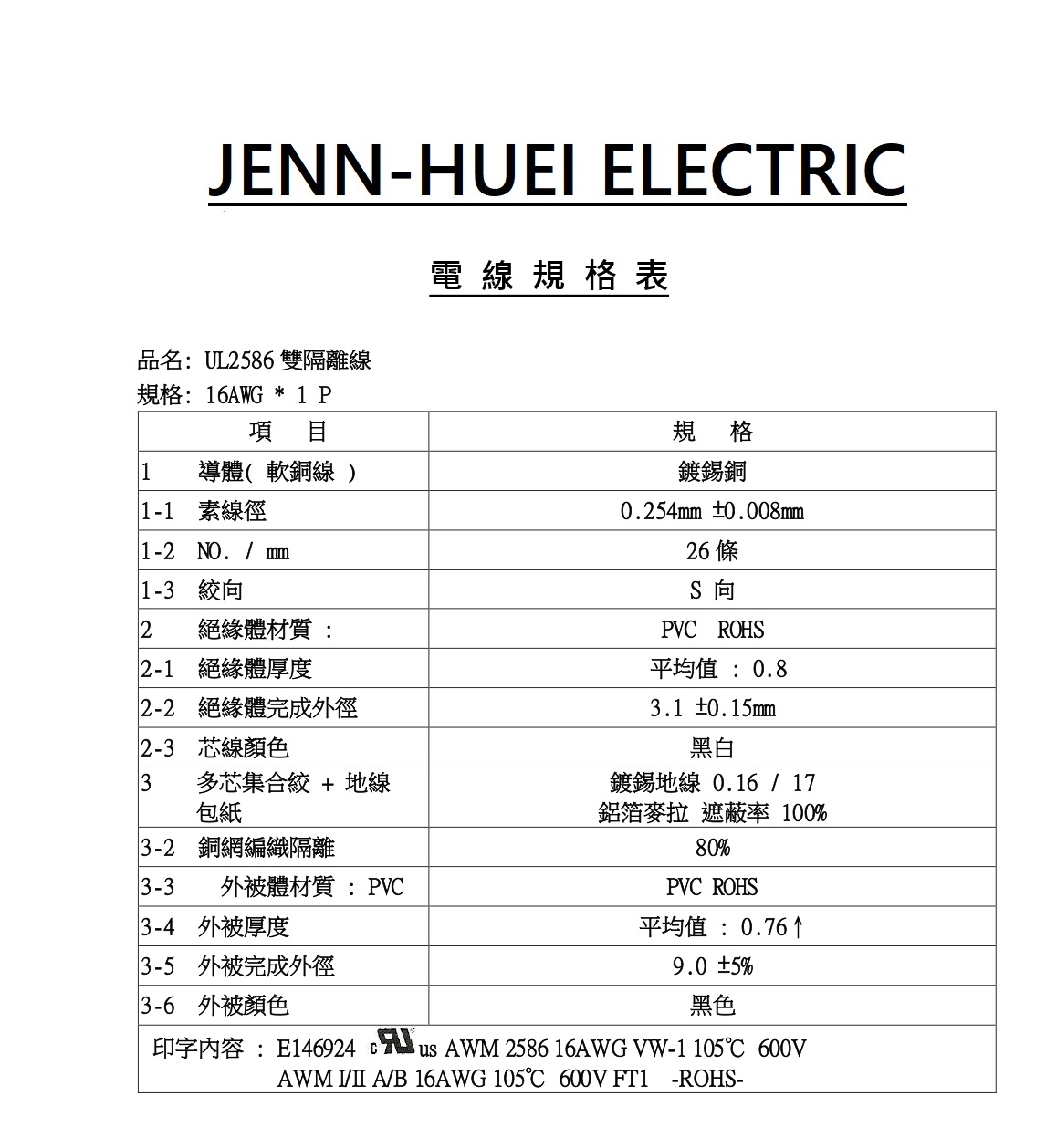

UL 2586：多芯隔離控制電纜。可用作電腦信號線、儀器儀表與工業自動化設備,有分單隔離跟雙隔離兩種。
Common Models and Applications:

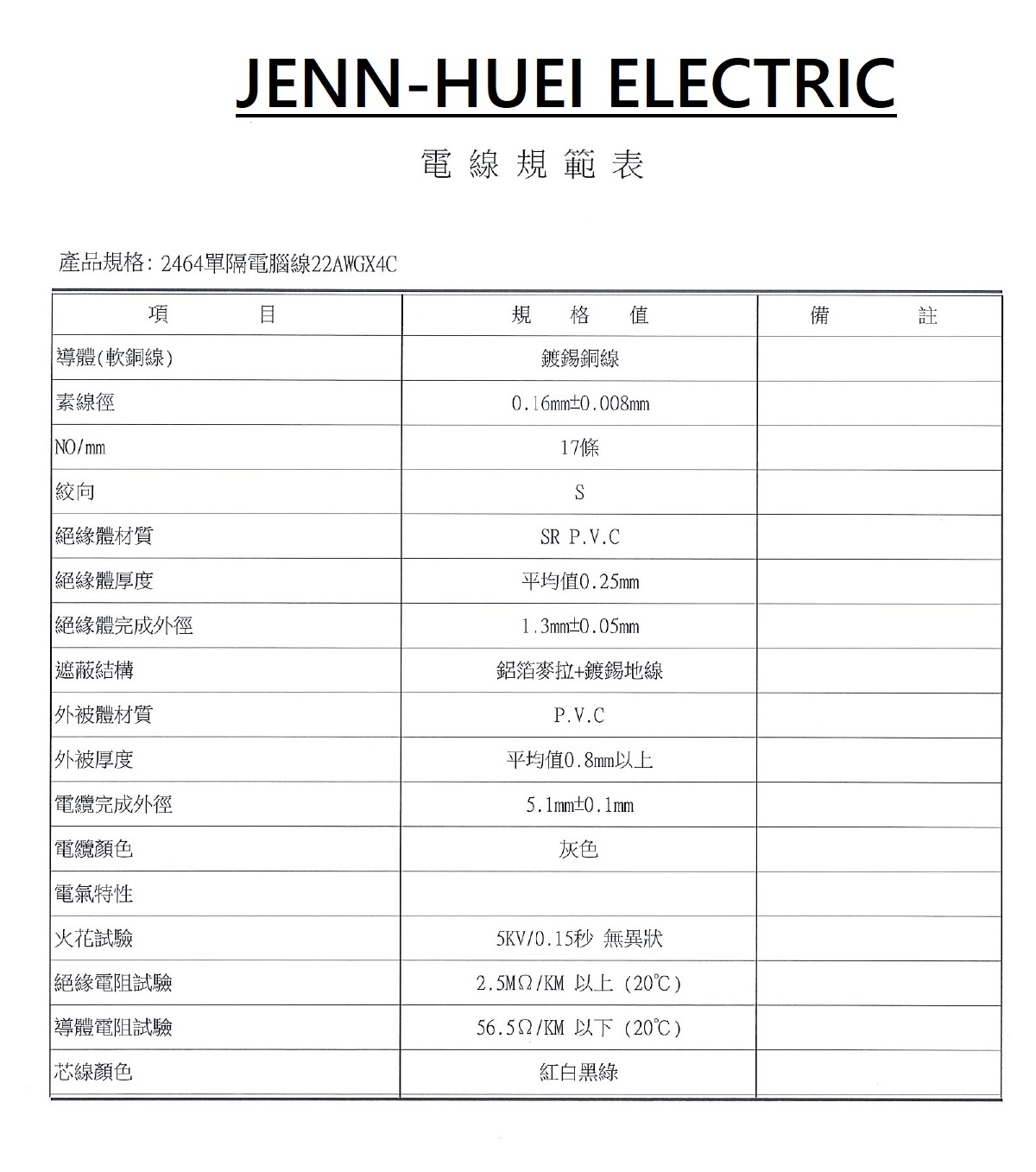

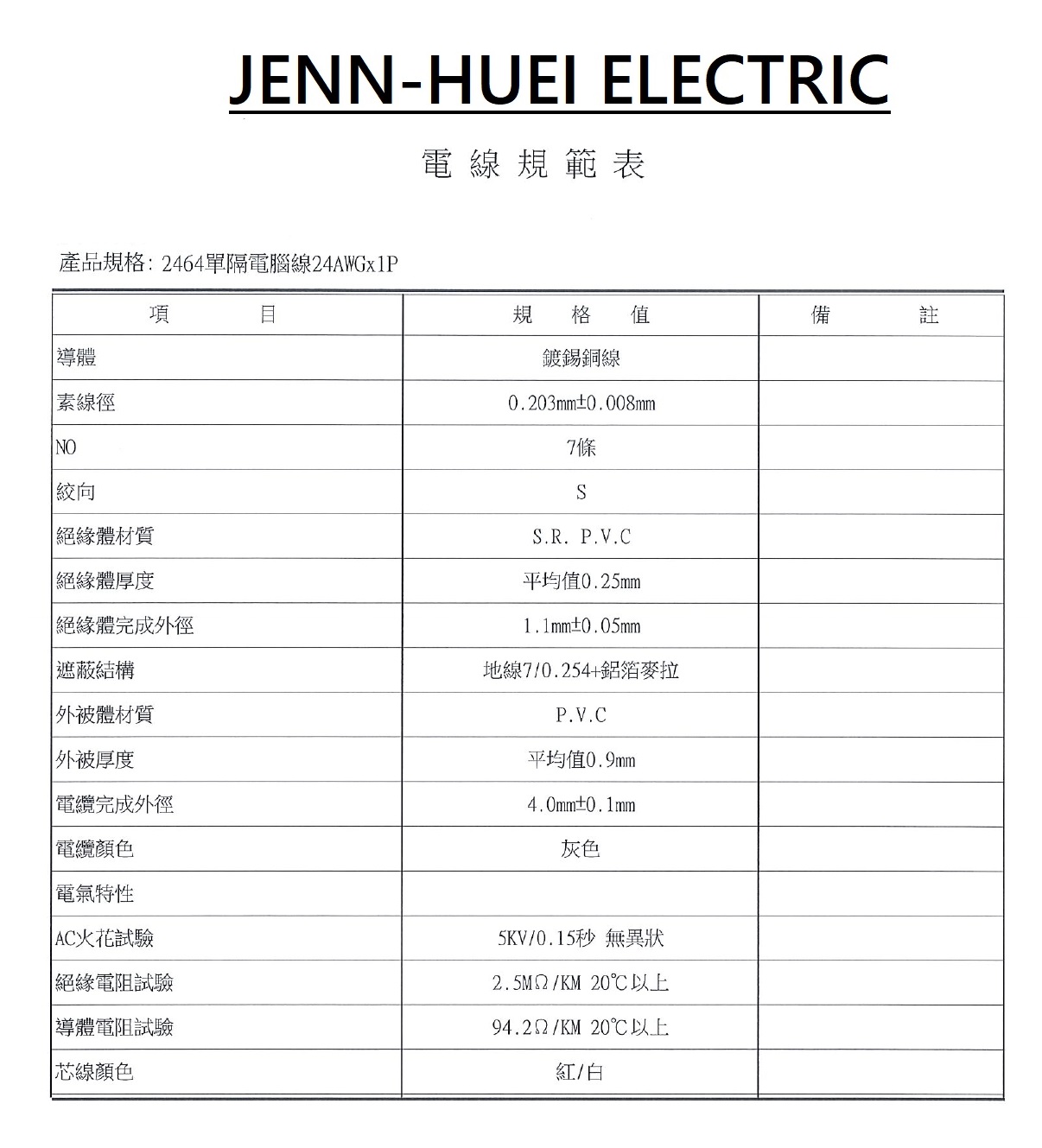

UL 2464: Multi-core insulated control cable. Suitable for computer signal cables, instruments, and industrial automation equipment. Available in single-insulated and double-insulated versions.

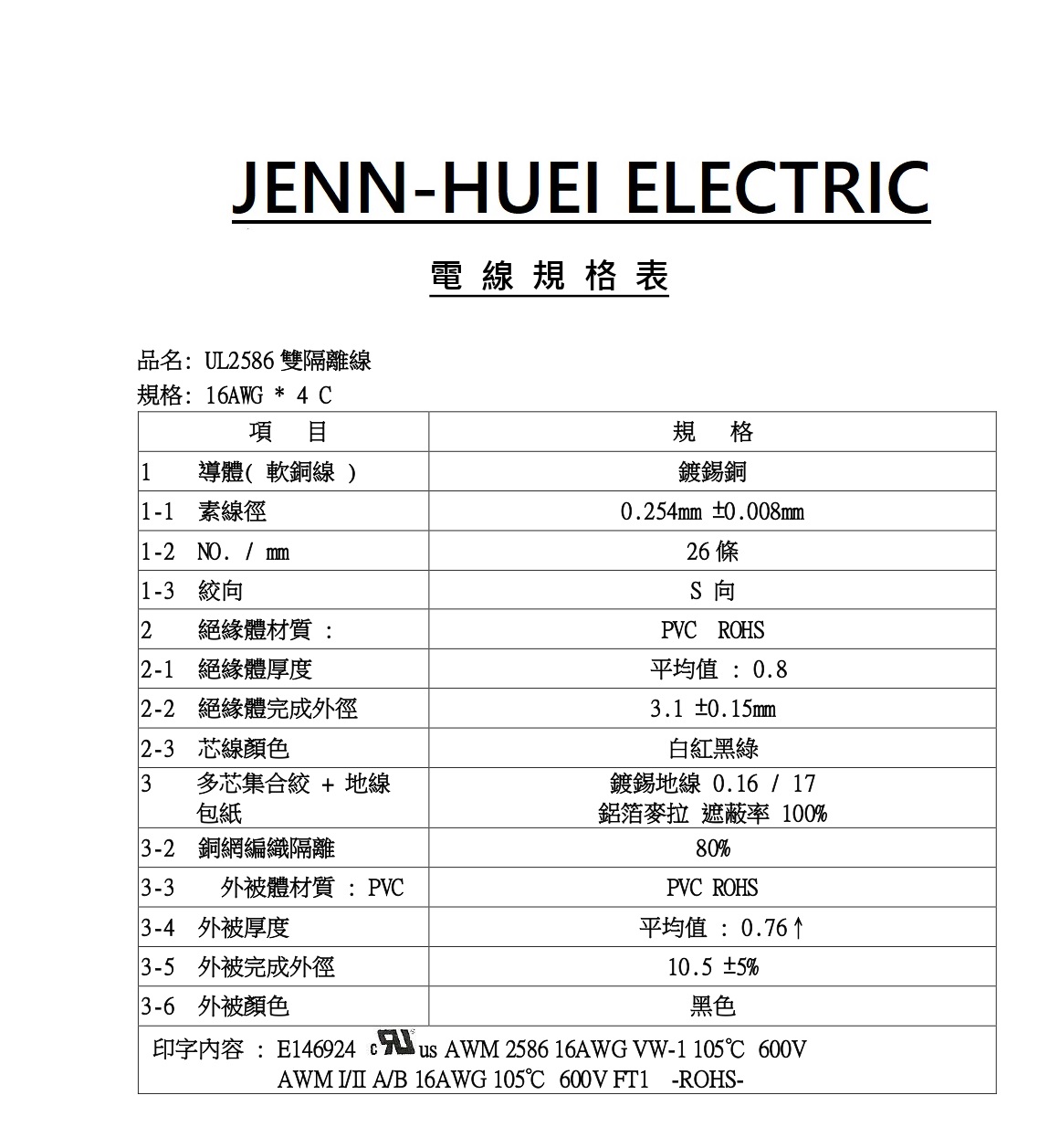

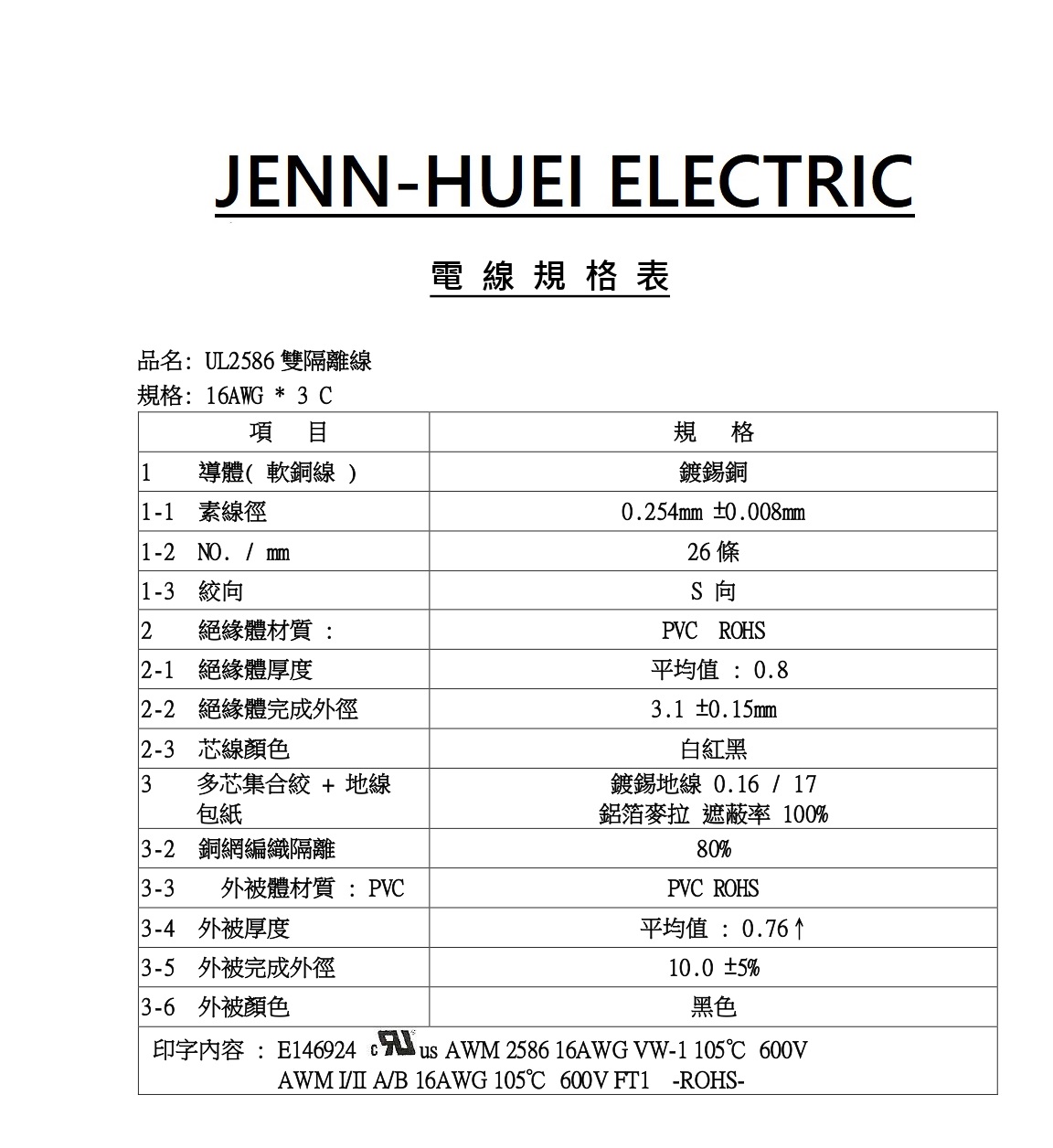

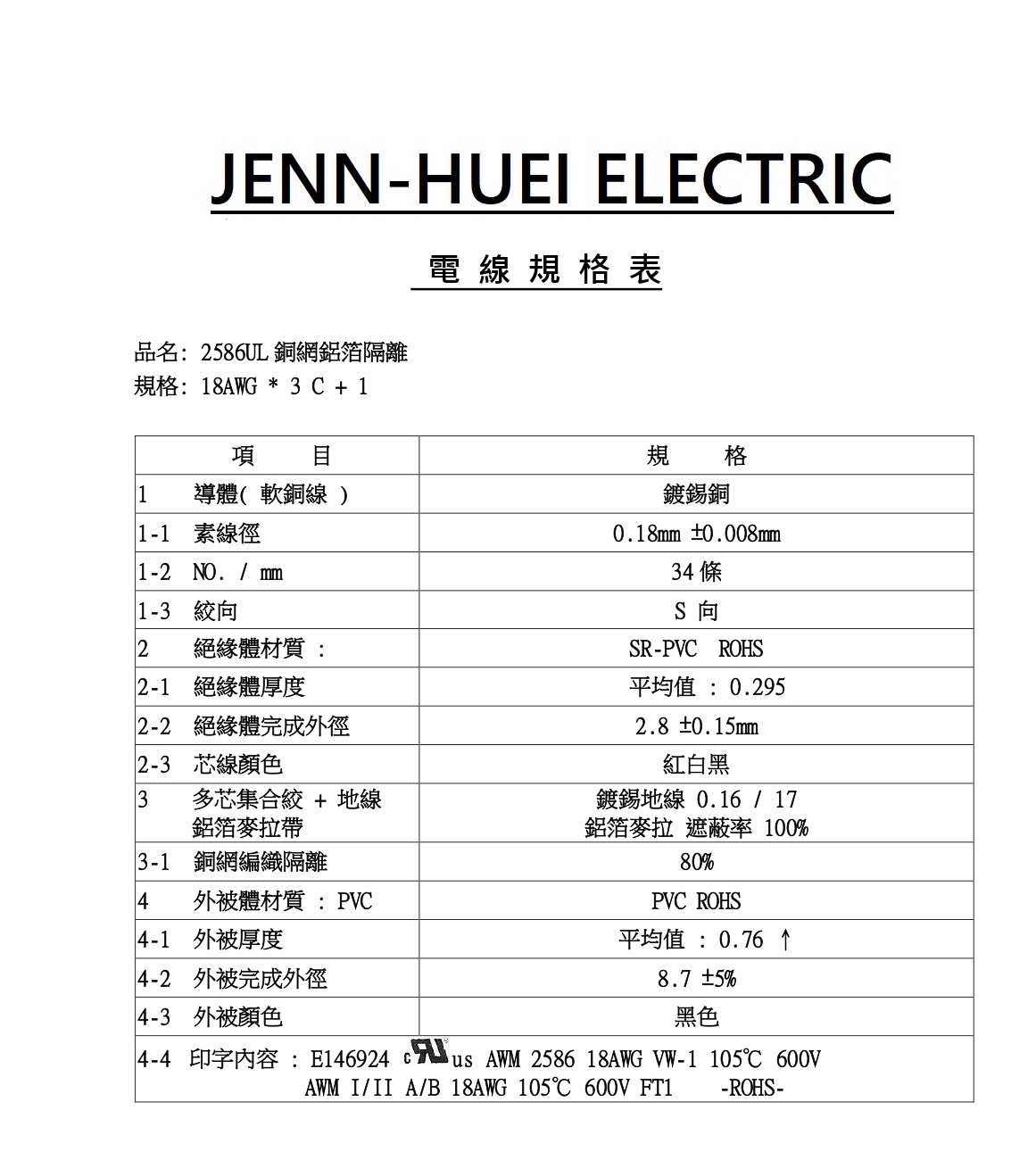

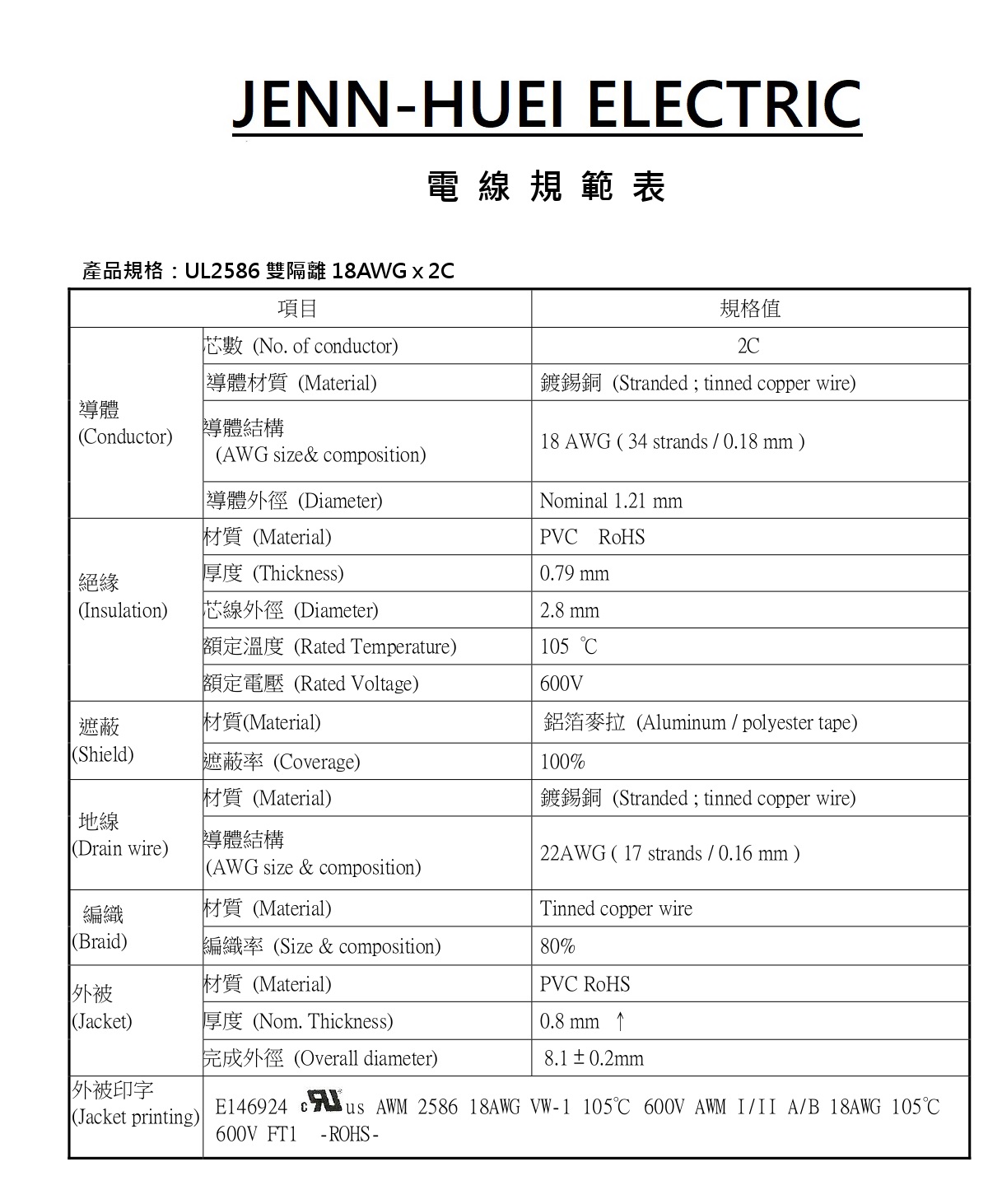

UL 2586: Multi-core insulated control cable. Suitable for computer signal cables, instruments, and industrial automation equipment. Available in single-insulated and double-insulated versions.
選購注意事項
- 確認工作電壓與溫度：依據使用環境選擇 300V 或 600V、80°C 或 105°C 的規格。
- 選擇隔離方式：單層隔離（僅鋁箔或僅銅網）防雜訊效果一般；雙層隔離（鋁箔加銅網）抗干擾能力更好。
- Purchase Considerations: Confirm Operating Voltage and Temperature:
- Select 300V or 600V, 80°C or 105°C specifications based on the operating environment. Choose Isolation Method: Single-layer isolation (aluminum foil only or copper mesh only) has moderate noise protection; double-layer isolation (aluminum foil plus copper mesh) has better anti-interference capabilities.
-
產品庫存：0
