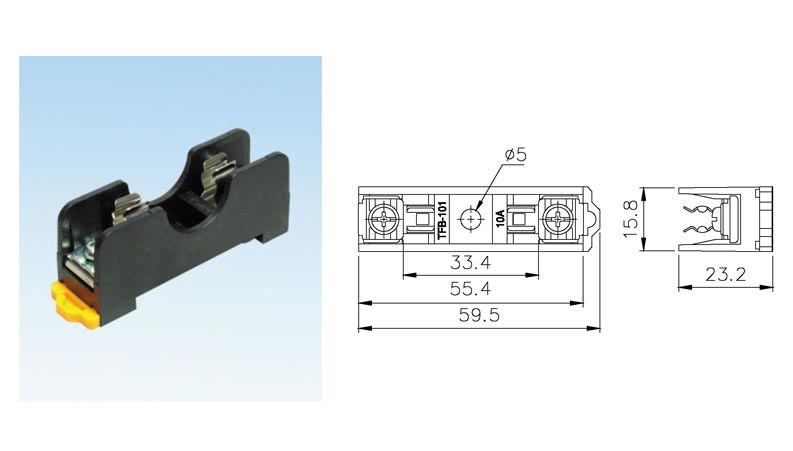

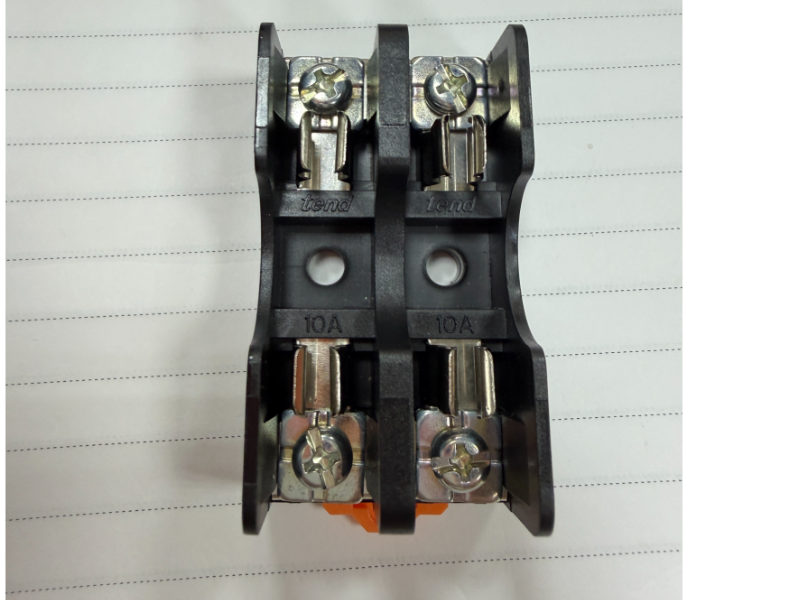

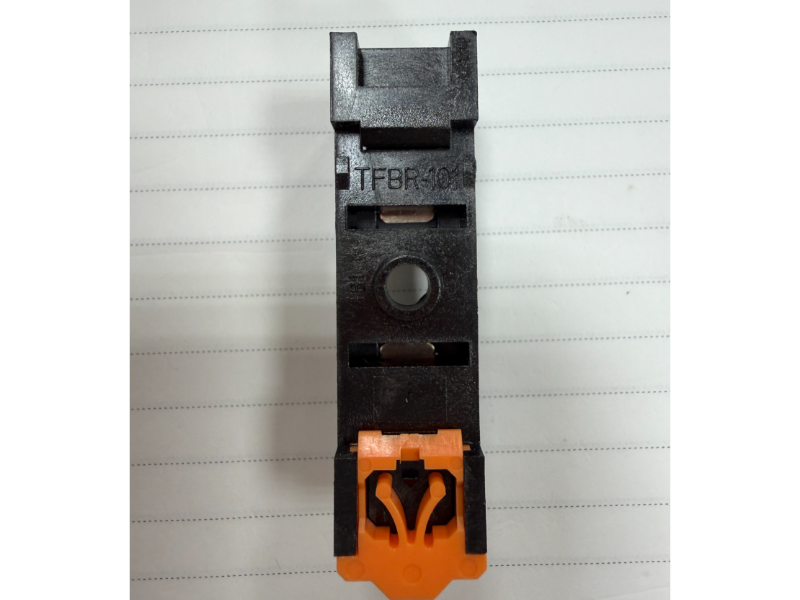

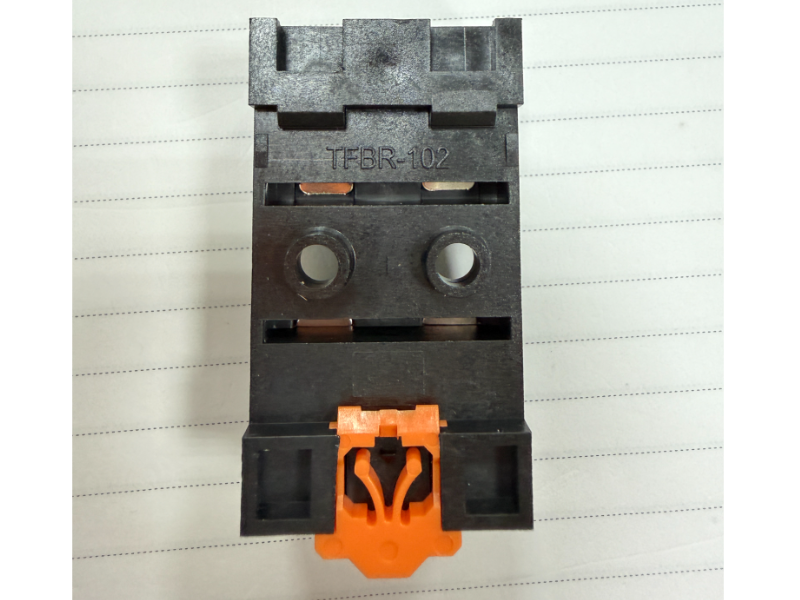

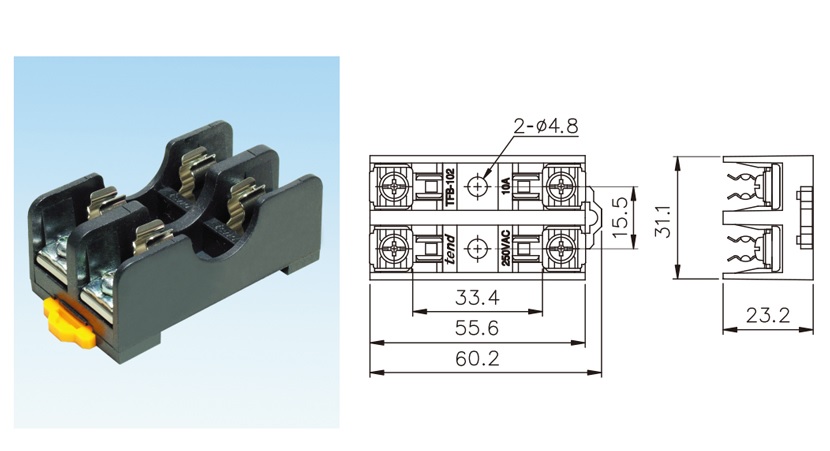

臥式保險絲座-可搭配非霓虹上蓋(玻璃保險絲)/Fuse Blocks(For Glass fuse)
商品簡述：
常見規格包含額定電壓 250V AC、額定電流 10A，並適用標準 30mm
（如 φ6.4 x 30mm 或 φ6.35 x 30mm）的圓管保險絲。
Horizontal fuse holder: Common specifications include a rated voltage of 250V AC, a rated current of 10A, and are suitable for standard 30mm (e.g., φ6.4 x 30mm or φ6.35 x 30mm) round tube fuses.
主要規格參數:
- 額定電壓：通常為 AC 250V。
- 額定電流：常見為 10A，部分高負載型可達 30A 或 32A。
- 適用保險絲尺寸：標準長度 30mm（直徑約 6.35mm 或 6.4mm）。
- 極數（P數）：提供單極 (1P)、雙極 (2P) 至三極 (3P) 等選擇。
- 材質：多採用耐熱電木（Bakelite）或防火塑膠材質（如符合 UL-94V2 等級）。

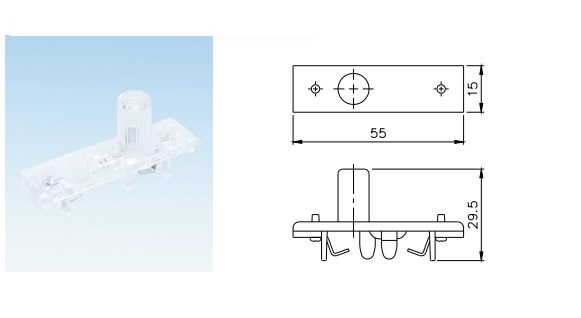

可另外裝非霓虹上蓋:
用上蓋顏色區分：電壓。
1.黃色上蓋:DC電壓
2. 透明上蓋:AC電壓
Main Specifications:
Rated Voltage: Typically AC 250V.
Rated Current: Commonly 10A, some high-load models can reach 30A or 32A.
Applicable Fuse Size: Standard length 30mm (approximately 6.35mm or 6.4mm in diameter).
Number of Poles (P): Available in single-pole (1P), double-pole (2P), and triple-pole (3P) options.
Material: Mostly made of heat-resistant Bakelite or fire-retardant plastic (e.g., compliant with UL-94V2 rating).

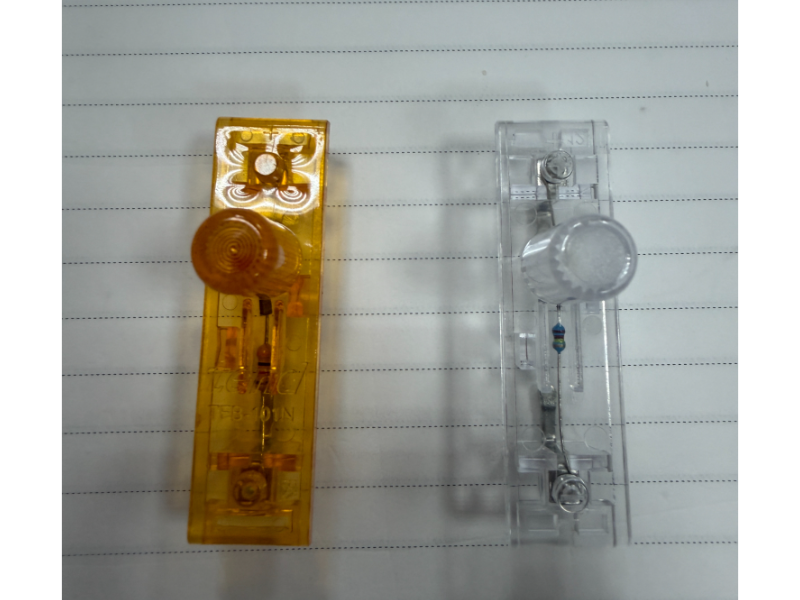

Non-neon cover can be installed separately:
Voltage is indicated by cover color.
1. Yellow cover: DC voltage
2. Transparent cover: AC voltage
Installation and Function Types
Fixing Method: Can be directly fixed with a locking plate or installed with standard DIN rails (e.g., DIN rails, TBR-N rails).
Additional features: Some models come with a fuse indicator light, which will light up when the fuse blows to facilitate troubleshooting.
用上蓋顏色區分：電壓。
1.黃色上蓋:DC電壓
2. 透明上蓋:AC電壓
Main Specifications:
Rated Voltage: Typically AC 250V.
Rated Current: Commonly 10A, some high-load models can reach 30A or 32A.
Applicable Fuse Size: Standard length 30mm (approximately 6.35mm or 6.4mm in diameter).
Number of Poles (P): Available in single-pole (1P), double-pole (2P), and triple-pole (3P) options.
Material: Mostly made of heat-resistant Bakelite or fire-retardant plastic (e.g., compliant with UL-94V2 rating).
Non-neon cover can be installed separately:
Voltage is indicated by cover color.
1. Yellow cover: DC voltage
2. Transparent cover: AC voltage
Installation and Function Types
Fixing Method: Can be directly fixed with a locking plate or installed with standard DIN rails (e.g., DIN rails, TBR-N rails).
Additional features: Some models come with a fuse indicator light, which will light up when the fuse blows to facilitate troubleshooting.
產品庫存：0
