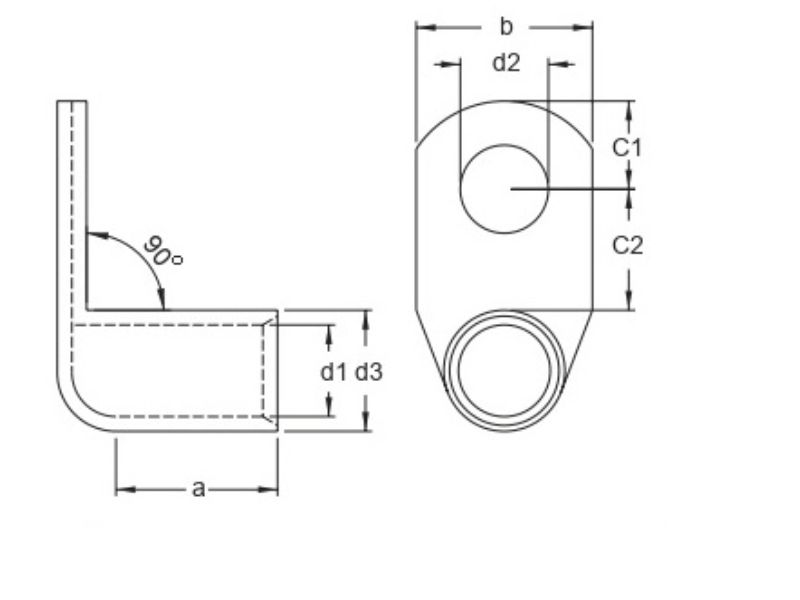

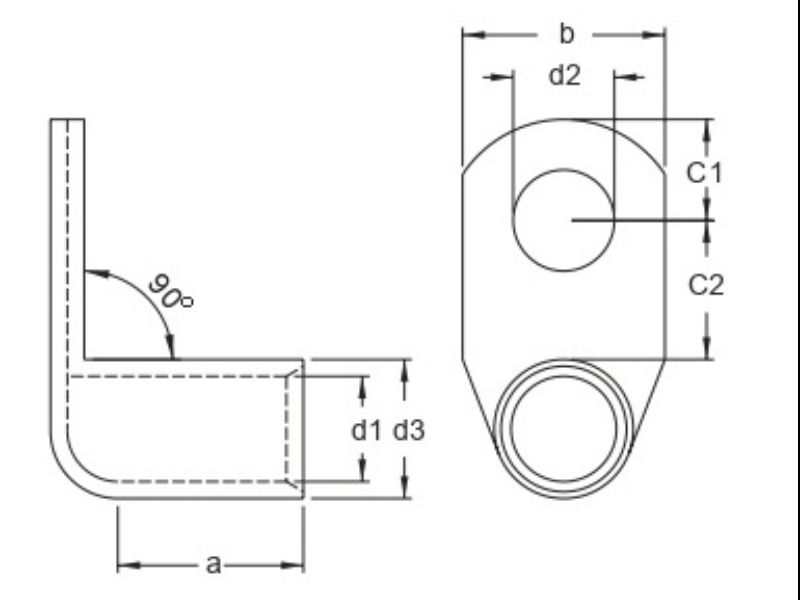

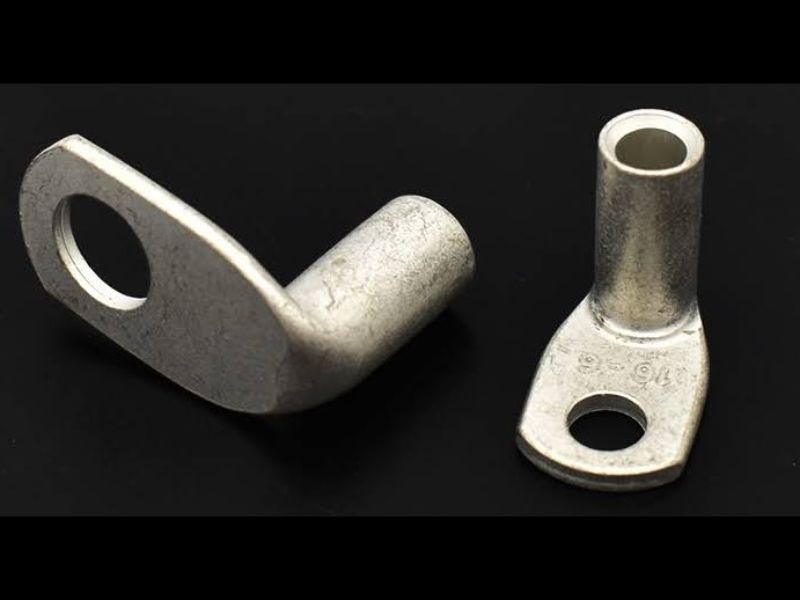

90°端子/90 degrees terminal
商品簡述：
A 90-degree terminal is a connector element that bends a terminal or pin to a right angle (90 degrees). It is mainly used in situations where space is limited, the direction of traces needs to be changed, or the height of printed circuit boards (PCBs) needs to be saved.
選用與安裝重點
- 空間導向：先確認現場高度限制與進線角度，避免線材過度折彎。
- 規格匹配：依據導線截面積（AWG 或 mm²）與螺丝孔徑挑選正確尺寸。
- 壓著工具：使用對應規格的壓著鉗確保金屬端子與導線緊密結合，防止接觸不良或脫落。
- Selection and Installation Focus
Spatial Guidance: First, confirm the site height restrictions and cable entry angle to avoid excessive bending of the cable.
Specification Matching: Select the correct size based on the conductor cross-sectional area (AWG or mm²) and screw hole diameter.
Crimping Tools: Use crimping pliers of the appropriate specification to ensure a tight connection between the metal terminal and the conductor, preventing poor contact or detachment.
產品庫存：0
