絕緣配線槽/Wiring Duct
商品簡述：
產品特性→
材質：UL合格之南亞PVC（灰色／白色），防火等級美規94V-0及歐規M1，PVC耐溫85℃。

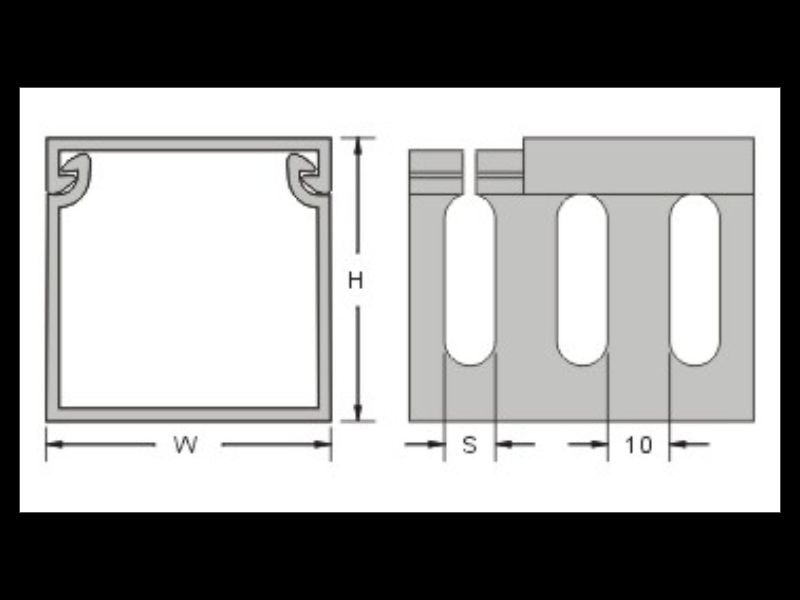

構造：由槽底及槽蓋兩部份組成，槽底兩側設有出線孔。
特點：1. 配線槽底座兩側出線孔互相對齊，鋸斷後可接成任意角度，能保持盤面美觀、整齊。
2. 槽蓋經特殊設計，與配線槽底座組合後不易脫落，且接合面平滑，不割傷手及電線。
3. UL測試溫度50℃。
● 絕緣配線槽蓋可更換為含膠型防滑配線槽蓋；更換後能有效增加澀度及黏度，使線槽底座與上蓋密合，以增加蓋子的緊固程度。
Product Features →
Material: UL-certified Nan Ya PVC (grey/white), fire rating US 94V-0 and EU M1, PVC temperature resistance 85℃.
Structure: Composed of a base and a cover. Cable outlet holes are located on both sides of the base.
Features:
1. The cable outlet holes on both sides of the cable tray base are aligned, allowing for easy assembly at any angle after sawing, maintaining a neat and aesthetically pleasing tray surface.
2. The cover is specially designed to prevent detachment after assembly with the cable tray base, and the smooth joint surface prevents cuts to hands and wires.
3. UL tested at 50℃.
● The insulated cable tray cover can be replaced with an adhesive-backed, non-slip cover; this effectively increases grip and adhesion, ensuring a tighter seal between the cable tray base and the cover, enhancing the cover's stability.
構造：由槽底及槽蓋兩部份組成，槽底兩側設有出線孔。
特點：1. 配線槽底座兩側出線孔互相對齊，鋸斷後可接成任意角度，能保持盤面美觀、整齊。
2. 槽蓋經特殊設計，與配線槽底座組合後不易脫落，且接合面平滑，不割傷手及電線。
3. UL測試溫度50℃。
● 絕緣配線槽蓋可更換為含膠型防滑配線槽蓋；更換後能有效增加澀度及黏度，使線槽底座與上蓋密合，以增加蓋子的緊固程度。
Product Features →
Material: UL-certified Nan Ya PVC (grey/white), fire rating US 94V-0 and EU M1, PVC temperature resistance 85℃.
Structure: Composed of a base and a cover. Cable outlet holes are located on both sides of the base.
Features:
1. The cable outlet holes on both sides of the cable tray base are aligned, allowing for easy assembly at any angle after sawing, maintaining a neat and aesthetically pleasing tray surface.
2. The cover is specially designed to prevent detachment after assembly with the cable tray base, and the smooth joint surface prevents cuts to hands and wires.
3. UL tested at 50℃.
● The insulated cable tray cover can be replaced with an adhesive-backed, non-slip cover; this effectively increases grip and adhesion, ensuring a tighter seal between the cable tray base and the cover, enhancing the cover's stability.
線槽一般有分兩種，有孔跟密封,顏色也有分灰色或者是白色，有些規格尺寸長度有1.7M或者2M長，

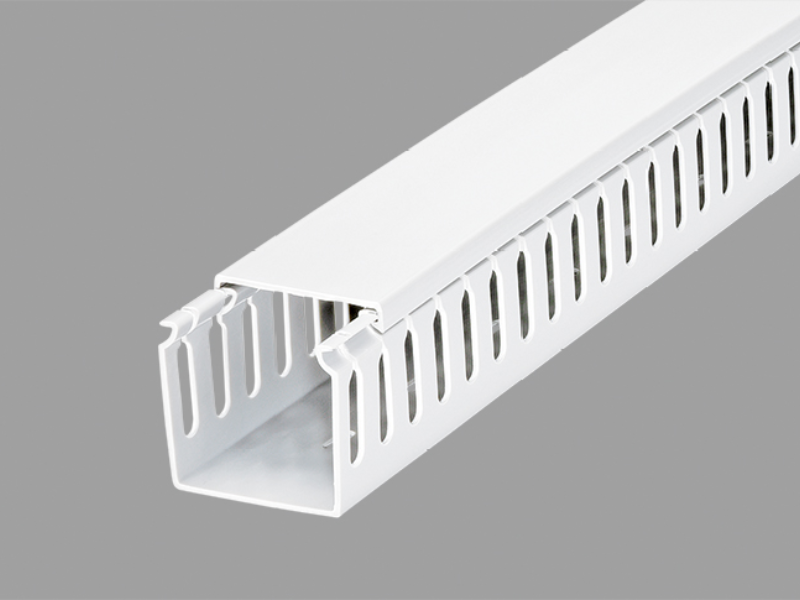

1.出線孔設計，方便搭配端子台配線兼具散熱功能。

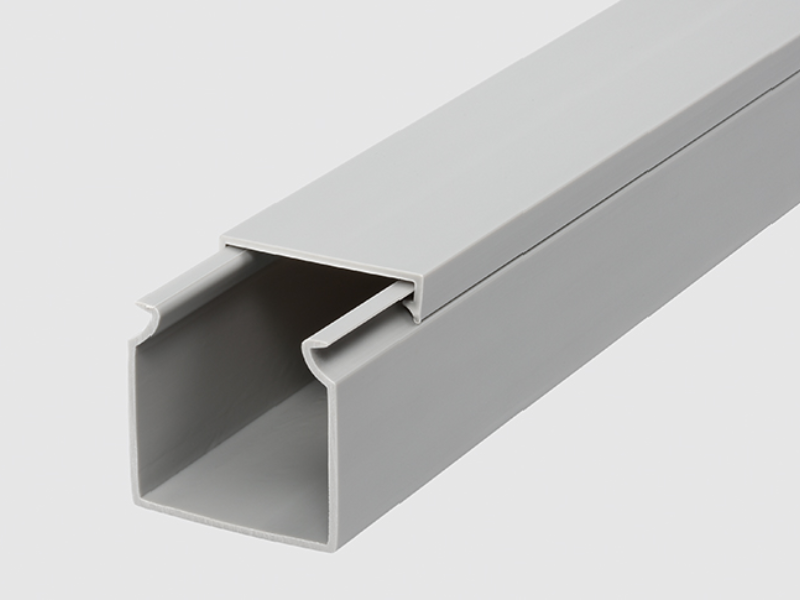

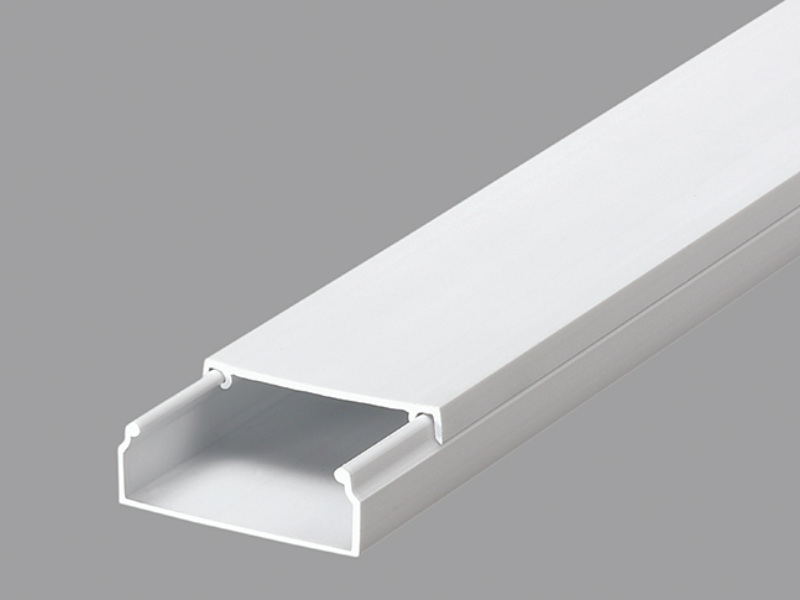

2.密封式設計，能有效防塵、防鼠功能。
Cable trays generally come in two types: those with holes and those that are sealed. They also come in colors such as gray or white. Some specifications have lengths of 1.7M or 2M.
1. The cable outlet design facilitates wiring with terminal blocks and also provides heat dissipation.
2. The sealed design effectively prevents dust and rodents.
產品庫存：0
